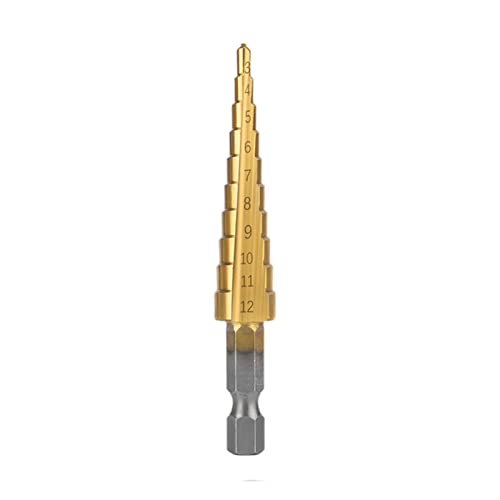

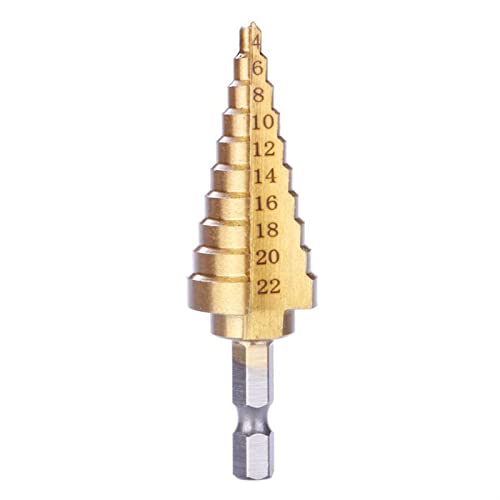

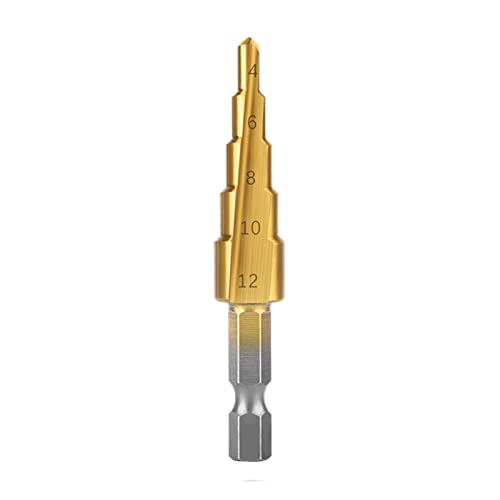

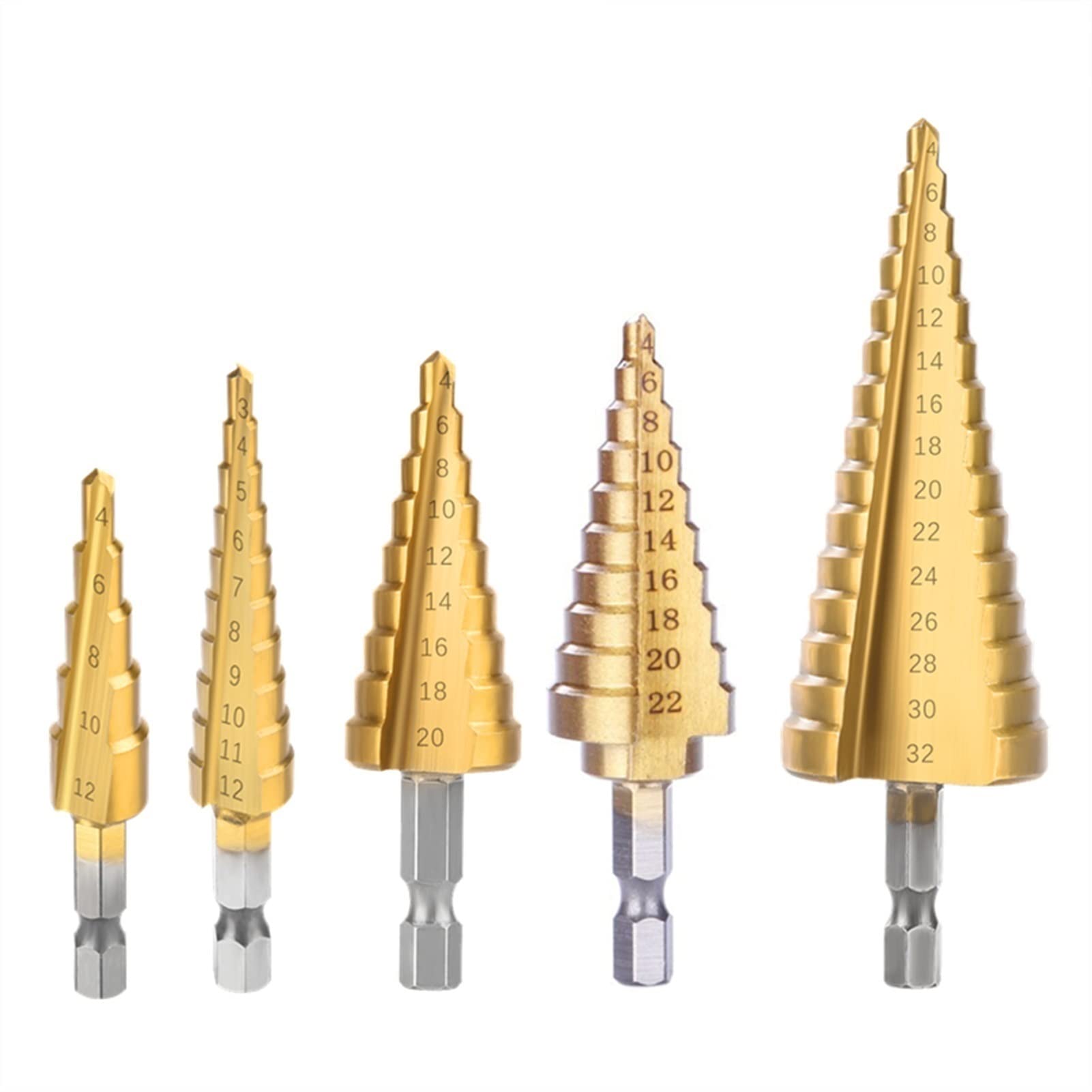

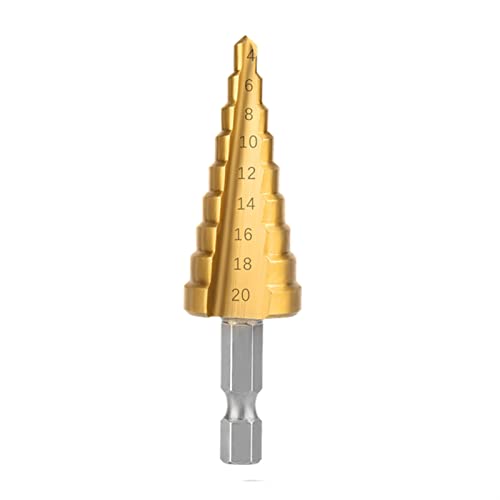

Titanium Coated HSS Step Drill Bit Set - High Speed Steel Cone Drill Bit for Metal, Wood, Plastic - Power Tool Accessories (4-12mm, 1pc) - Perfect for DIY Projects, Home Repairs & Metalworking

Product Description

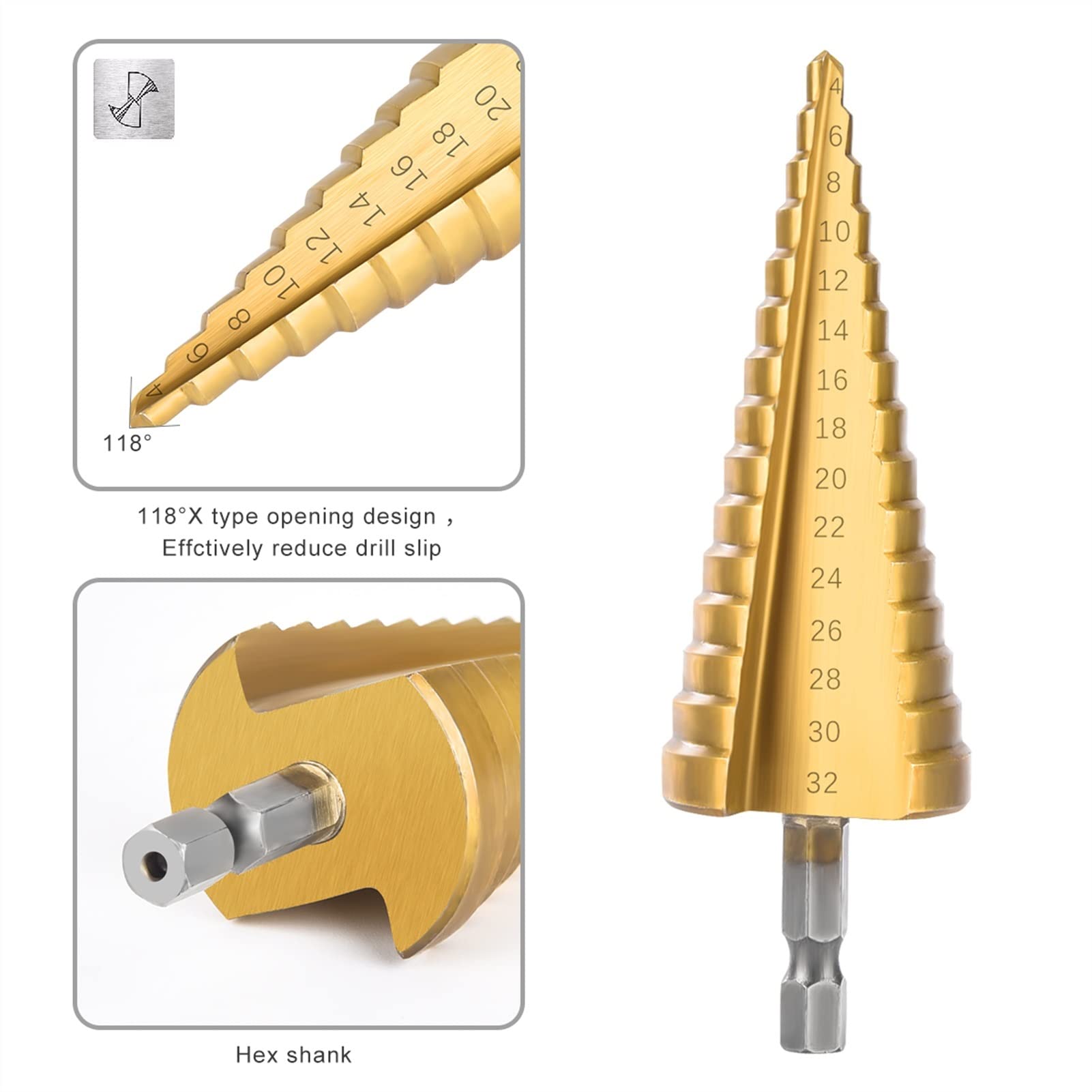

Features:100% New and High QualityHeat treated and highly polished. Drills perfectly round holes in steel, brass, plastic, wood etc.3 sided shanks design in order to prevent slippage when in chuckTwo flute design drives faster, smoother and cleaner cuts each step is clearly labeled with the depth diameter in stepsAttention:Because of the outer diameter of each step of the step drill is gradually expanded,then the corresponding cutting resistance and linear velocity will also be gradually increased.Owing to the step drill is completely dependent on the inclined edge that is only with 1mm length,If the feed speed is too fast when drilling,it will be easily to be annealing caused by abrasion of the oblique edge.Please give a downward force when drilling, do not press down too hard to avoid the edge wearing.Suitable material: Workpieces with general hardness, such as wood, plastic, PVC plate, iron plate, plate thickness within 3MM. Please note that stainless steel and spring steel are not applicable. Not for quenching.(Water injection cooling while working, it can effectively extend the service life of the drill bit, especially in the case of continuous drilling)Rotating speed:4-12 speed:260-4004-20 Speed:180-2404-32 speed:90-160Length: 3-12mm Length: Approx. 7.9cm/ 3.11"4-12mm Length: Approx. 6.7cm/ 2.64"4-20mm Length: Approx. 7.4cm/ 2.91"4-22mm Length: Approx. 7.7cm/ 3.03"4-32mm Length: Approx. 102mm/ 4.01inchThe Cutters Come in the Following Sizes:3-12mm(3mm,4mm,5mm,6mm,7mm,8mm,9mm,10mm,11mm,12mm) 10 Steps4-12mm: (4mm, 6mm, 8mm, 10mm, 12mm) 5 Steps4-20mm:( 4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm）9 Steps4-22mm:( 4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 4-22mm）10 Steps4-32mm :(4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, 24mm, 26mm, 28mm, 30mm, 32mm) 15 StepsPackage
