Self Centering Dowel Jig Kit - Adjustable Woodworking Drill Guide with Bushings Set | Precision Joinery Tool for Cabinet Making & Furniture Repair | Power Tool Accessories for DIY Projects & Professional Woodworkers (Orange, XL)

Product Description

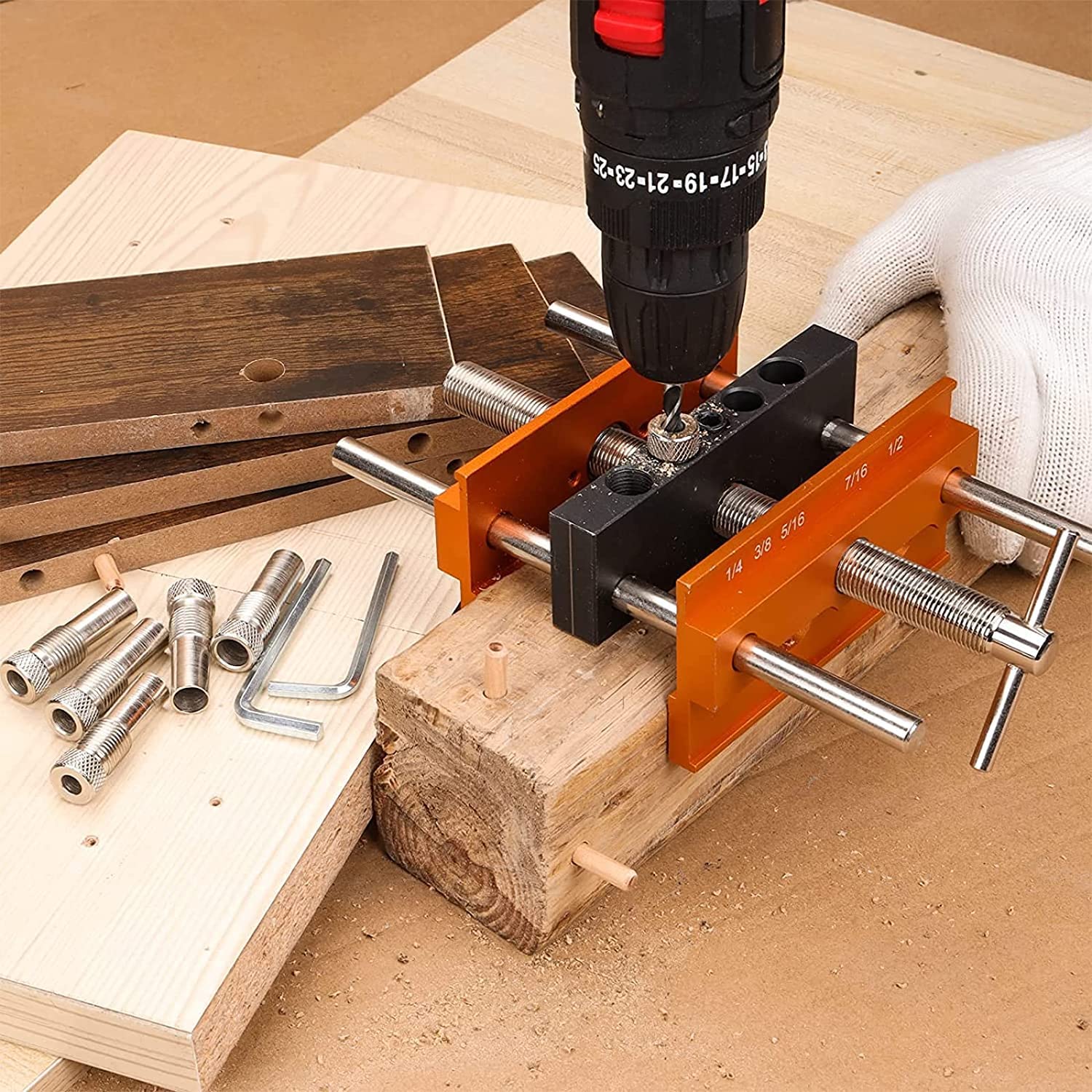

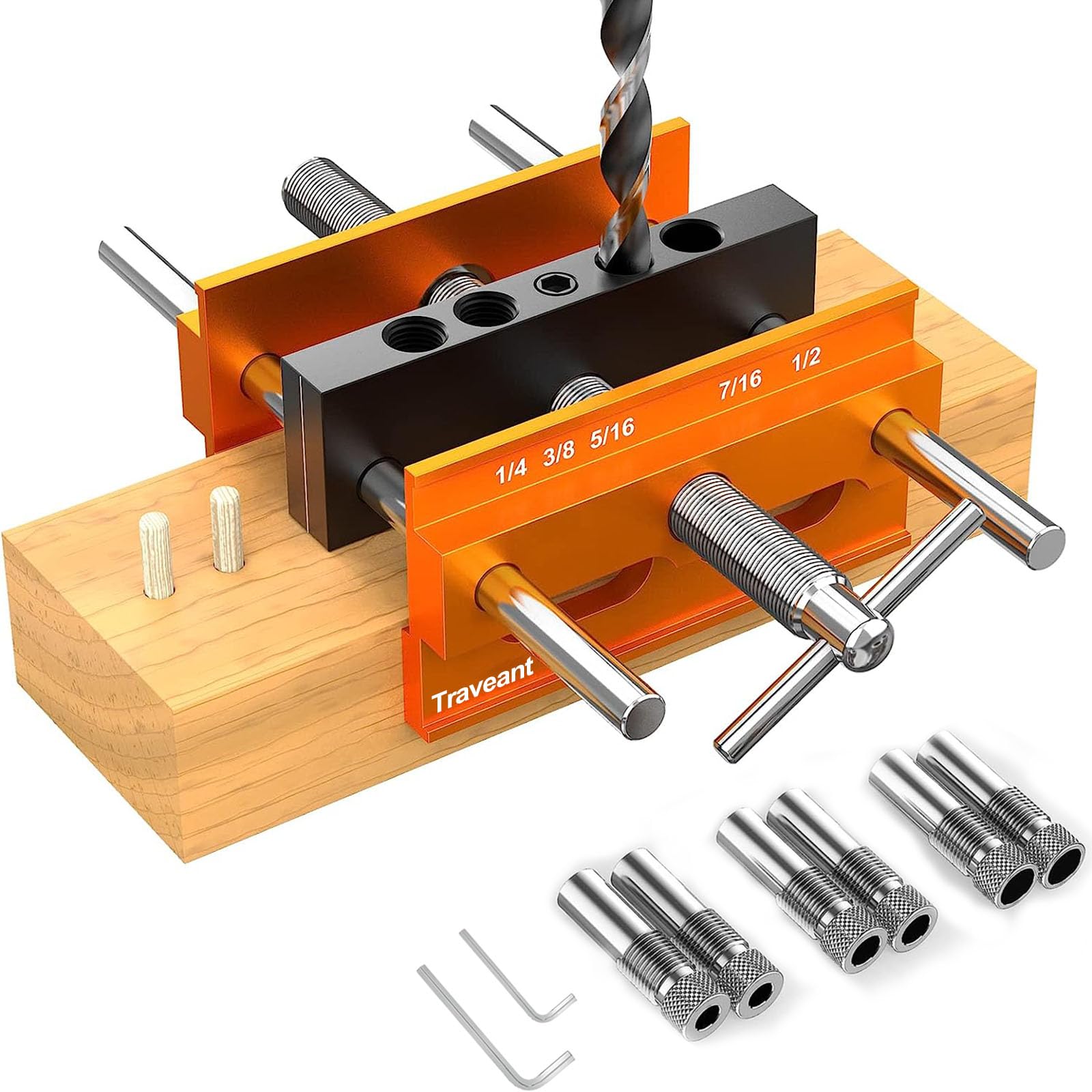

Traveant Upgraded 6.7 inch Self Centering Doweling Jig Kit SPECIFICATION Scale: Inch scale Material: Aluminum and steel Boring size: 1/4", 3/8", 5/16", 7/16", 1/2". Bushing Set: Two each of 1/4", 5/16" and 3/8". Package include: Self Centering Dowelling Jig Plus x 1, 5/16" Drill Sleeve x 2, 3/8" Drill Sleeve x 2, 1/4" Drill Sleeve x 2, "L" Type Wrench x 2. How to solve the problem of not centering ？ 1: In the process of using, if the left and right distances of individual products are asymmetry or deviation, it can be adjusted 2: Use the inner hexagon to unscrew the two screws on the left 3: Adjust the big screw on the middle pole to make the left and right distances of the product consistent 4: After the left and right distances are the same, tighten the two hexagon socket screws on the left 5: Twist the small rotating rod, test whether the left and right distances are uniform, if they are consistent, the debugging can be used, if there is deviation, then follow the above steps to make slight adjustments 6: After debugging, the left and right balance distances are the same 7: In the follow-up, we will strictly debug the product before leaving the factory to ensure the quality of the product, and give a small wrench as a gift, which is convenient for use and can be adjusted with slight deviations. ERROR ADJUSTMENT METHOD Use a hexagon socket to loosen the two hexagon screws in the middle of the fixture.Adjust the aluminum alloy splints on the left and right sides of the central axis to make the left and right diameters of the splint consistent.Tighten the two hexagon socket screws with a hexagon socket.After debugging, the left and right distances are the same and the error is eliminated.
